Opis
When we introduced the X-Series wings, we took Cabrinha’s foil program to a whole new level. Through working alongside SINTEF and the University of Norway where we were able to fully breakdown and simulate hydrofoil performance in the world’s largest cavitation tank. From this we have been able to further evolve the X-Series into the industry’s leading all round hydrofoil. Early lift, but with a high top speed has been achieved, and through refined tip shape and profile, you are able to break the tips free, but still be ready to carve into your next turn.
The Fusion X-Series Kits come with everything you need, you just need to add your mast of choice. (Masts sold separately)

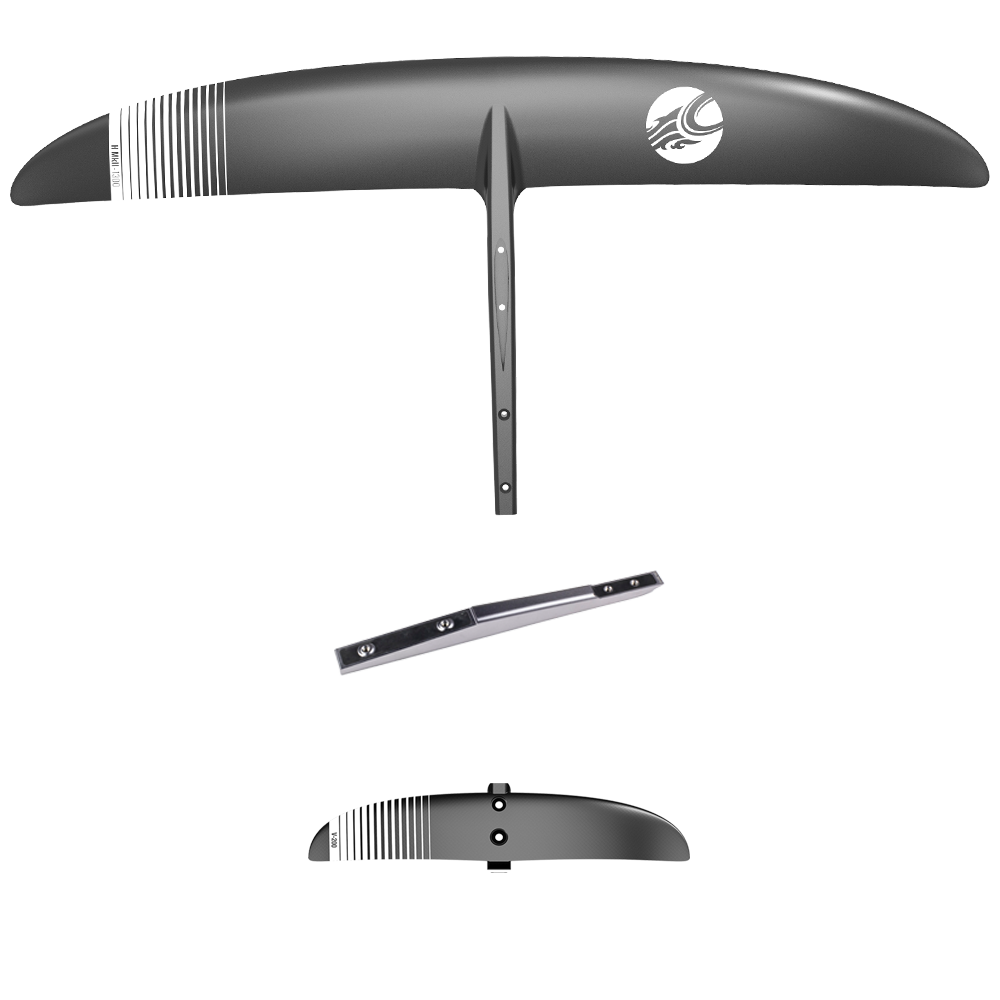

INCLUDED IN KIT
- Wing & Stabilizer
- Fusion Fuselage Alloy Medium
- Track Nut Train X2
- Screw Set Foam Core Boards
– – –
DESIGN PROFILE
Swept LE, Straight TE, Ultra lean efficient profile, moderate anhedral
– – –
- Loose and agile
- All round lean profile
- Refined tip shape
- Tapered fit
- Torsional Stiffness
- Medium AR
- PMI core
- Pre Preg construction

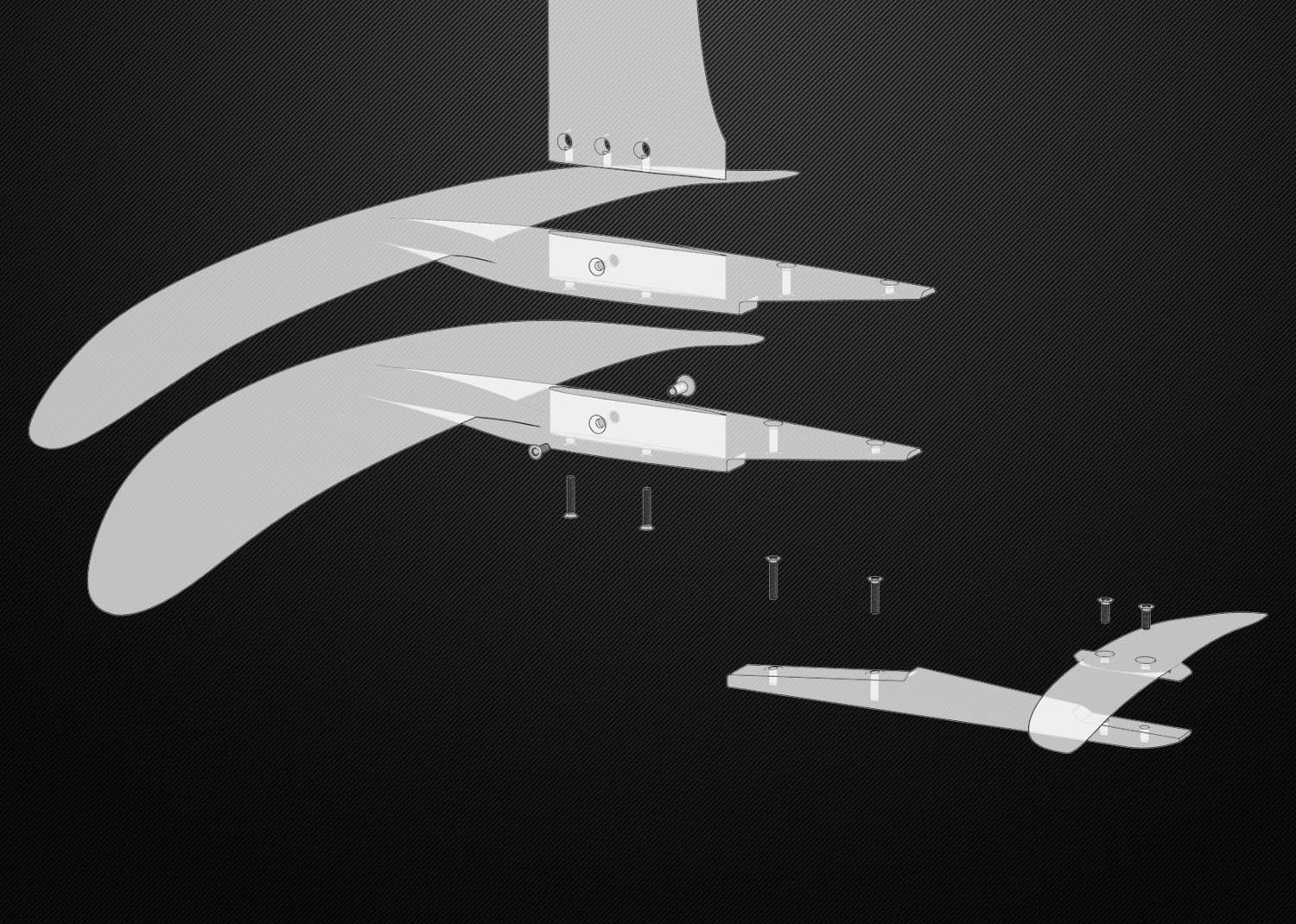

- Modular
- Optimal efficiency and maneuverability
- Flat center, to downward tips, for perfect balance between locked-in feel and agility
- Single molded components for minimal drag

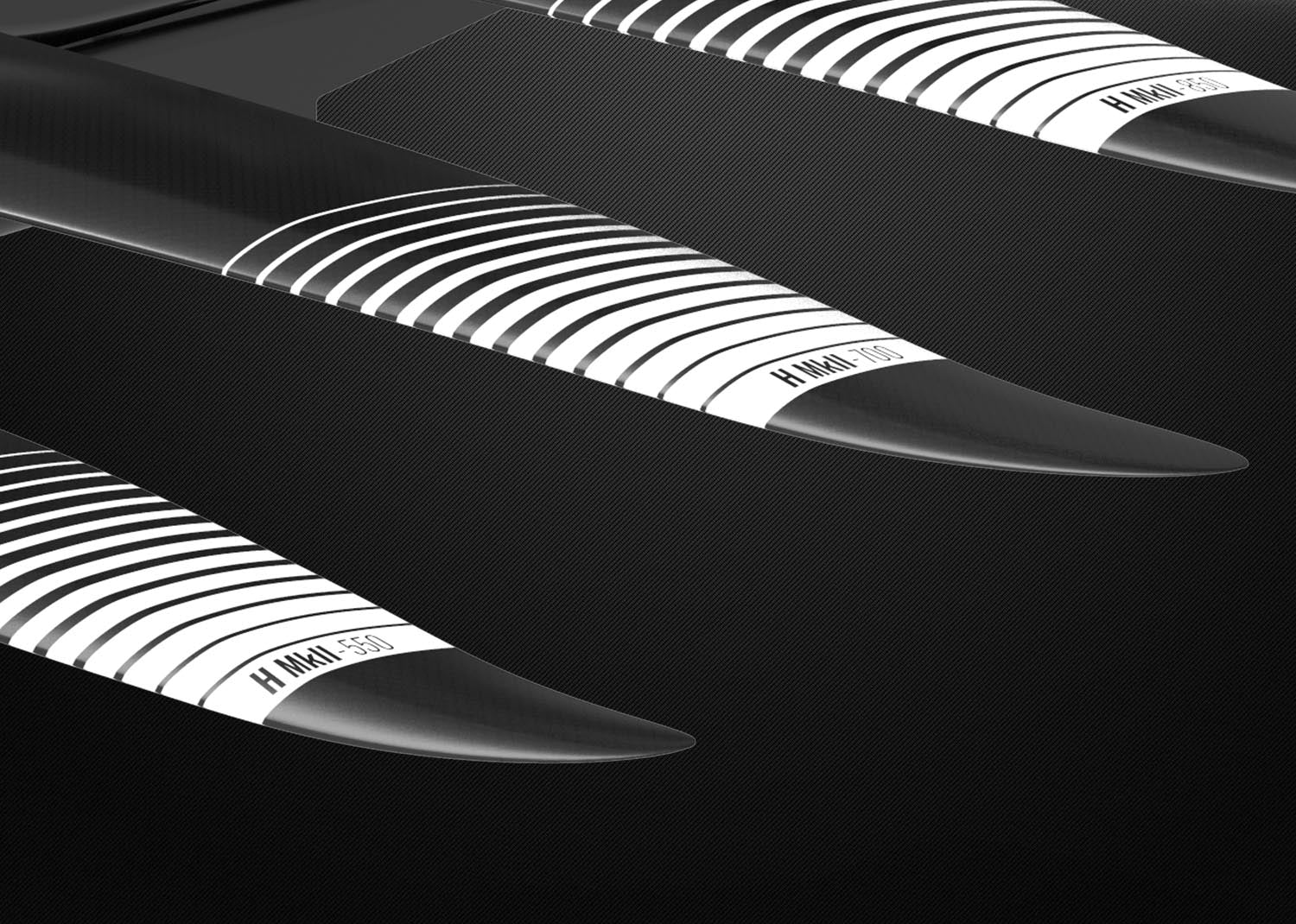

- Full prepreg carbon construction
- PMI core for superior strength to weight ratio
- NEW insulated mounting surfaces for Improved durability and longevity
- Helicoils for superior durability and eliminating corrosion
– – –
TECH SPECS
- X700- 700cm^2, WS 640mm, AR 5.85, Chord 140
- X930- 930cm^2, WS 750mm, AR 6.05, Chord 165
- X1240- 1240cm^2 WS 870mm, AR 6.10, Chord 190
- X1650- 1650 cm^2, WS 1010mm, AR 6.18, Chord 220
- X2100- 2100 cm^2, WS 1150mm, AR 6.01, Chord 255
- V180, WS-340, AR-6.42
-
V200, WS-360, AR-6.48
- V230, WS-400, AR-6.96
- V285, WS-450, AR-7.11
- Fuselage(M) 346mm
